Metro solutions Thermal Temperature Monitoring Access Control
Accurate, Efficient & Cost-effective
Wall MountedTemperature Accuracy: ±0.3°C Temperature Monitoring Dis- tance: 0.3m~0.8m
Sound Prompt: Abnormal tem- perature alarm
Are you looking for a solution to manage to manage and monitor access into public buildings, commercial office / premises or retail environments?
Due to the Coronavirus ( COVID-19) outbreak in the last few weeks the world has changed in how we go about our daily lives. Everything from the way we shop, go to work or even how we will socialise.
The Metro Solutions & Dahua Thermal Temperature Monitoring Access Control

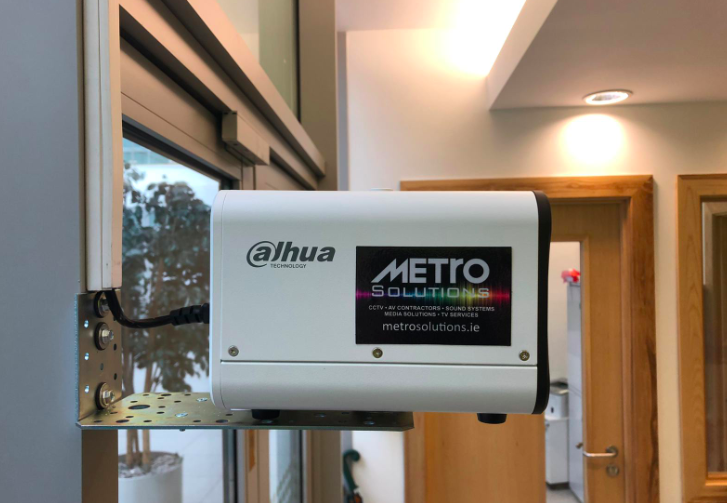

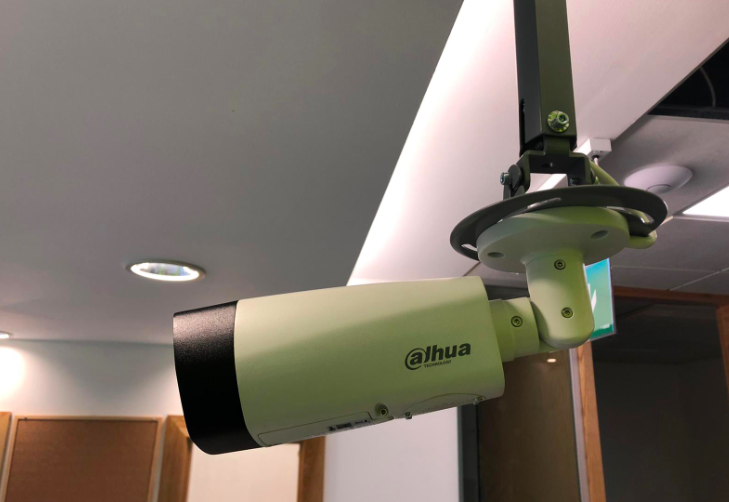

offers the latest hybrid thermal network camera that combines a Vanadium Oxide (VOx) sensor with a 2 MP visible-light sensor. The solution also provides a blackbody calibration device that maintains a customizable constant temperature as a reference point for the thermal camera.
The thermal camera coupled with the blackbody calibration device and a feature-rich 4 TB Network Video Recorder delivers a contactless solution for continuous and non-invasive comparison of human skin temperature compared to the blackbody device. Thermal Temperature Monitoring technology enables quick detection of elevated skin temperatures compared to the customizable blackbody calibration device. Thermal imaging equipment can easily be installed and implemented to detect elevated skin temperature in environments such as airports, hospitals, clinics, office buildings, cruise ships, and any large public gathering location.
The Dahua Thermal Temperature Monitoring Access Control is not FDA-cleared or approved. The Solution should not be solely or primarily used to diagnose or exclude a diagnosis of COVID-19 or any other disease. Elevated body temperature should be confirmed with secondary evaluation methods (e.g., an NCIT or clinical grade contact thermometer). Users, through their experience with the Solution in the particular environment of use, should determine the significance of any fever or elevated temperature based on the skin telethermographic temperature measurement. Visible thermal patterns are only intended for locating the points from which to extract the thermal measurement.
Face Recognition Access Controller and temperature measurement - ASI7223X-A-T1 - Accuracy + - 0.5º
Technical Specifications
2.5D curved screen
7 Inch LCD display with resolution of 1024×600
2 MP CMOS, WDR
Vehicle level LCD whose working temperature is -30°C to 60°C
IP65 (Silicone sealant is needed. For details, see the quick start guide.)
Auto fill light reduces light pollution
Can hold 100,000 users, 100,000 face images, 100,000 cards, 100,000 password, 50 administrators, and 300,000 records
Support face, IC card, password unlock and unlock through their combinations
With face detection box; the largest face among faces that appear at the same time is recognized first; the maximum face size can be configured on the web
Face-camera distance: 0.3 m–2.0 m; human height: 0.9 m–2.4 m (lens-ground distance: 1.4 m)
With face recognition algorithm, the access controller can recognize more than 360 positions on human face
Face recognition speed: 0.2 s per face · Support liveness detection
Accurate recognition in backlight and front light
Various unlock status display modes protect user privacy
Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, and illegal card exceeding threshold alarm
Support general users, patrol users, VIP users, guest users, and special users
